Presonus Monitor Station V2 Monitoring Controller

Top Selling Products

Epiphone Les Paul Melody Maker E1

EGP4.000,00
Yamaha C2X GRAND PIANO

EGP710.000,00
Arturia KeyLab 49 MkII MIDI Controller

EGP5.000,00
Guitar

EGP0,00
Piano

EGP0,00
Violin

EGP0,00

Reviews & Ratings

0 out of 5.0

(0 reviews)

Rate this Product

There have been no reviews for this product yet.

Description Video Downloads

More Information

Inputs

Internal Talkback Microphone
Gain Range	+15 to +55 dB
Type	Electret condenser
Sensitivity	-42 dB

Stereo 1 and Stereo 2 Inputs
Type	¼” TRS Active Balanced
Input Impedance (Balanced)	10 kΩ
S/N Ratio (1 kHz @ +10 dBu, Unity Gain)	>105 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain)	<0.0075%
Frequency Response (±0.5 dB)	10 Hz to 65 kHz
Noise Floor (20 Hz to 20 kHz, 150Ω input termination)	-96 dBu
Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N)	+22 dBu

Auxiliary Inputs
Type	RCA Active Unbalanced
Input Impedance	47.5 kΩ
S/N Ratio (1 kHz @ 0 dBu, Unity Gain)	>115 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain)	<0.01%
Frequency Response (±0.5 dB)	10 Hz to 50 kHz
Gain Range	80 dB to +10 dB

S/PDIF
Types	RCA 75Ω coax
Dynamic Range	113 dB
THD+N	0.0025% (1 kHz @ -1 dBFS)
Maximum output at 0 dBFS	+18 dBu
Sample Rates	44.1, 48, 88.2, 96 kHz

Input Meters (ST1, ST2, and Aux only)
Type	Dual 8-segment LED w/peak hold
Sensitivity Range	-24 dB to 0 dB

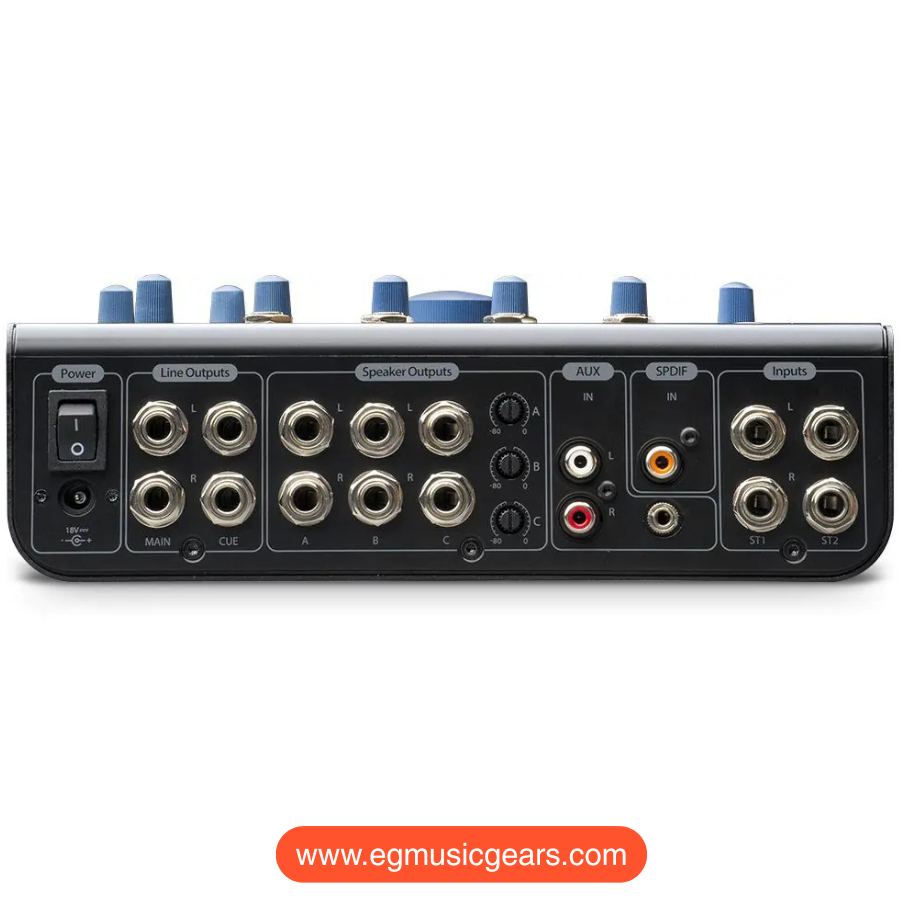

Outputs

Audio Outputs
Type	¼” TRS Active Balanced
Output Impedance (Balanced)	51Ω
THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain)	<0.01%
Frequency Response (±0.5 dB)	10 Hz to 50 kHz

Speaker A, B, and C
Trim Range	-80 dB to 0 dB
Main Level Range	-80 dB to 0 dB
Dim Attenuation Range	-30 dB to -6dB

Cue
Cue Level Range	-80 dB to 0 dB
Dim Attenuation (Talkback activated)	-20 dB

Headphones
Type	¼” TRS Active Stereo
Maximum Output (60Ω load)	150 mW / channel
Frequency Response (±1.0 dB)	10 Hz to 50 kHz

Weight

4.54 kg

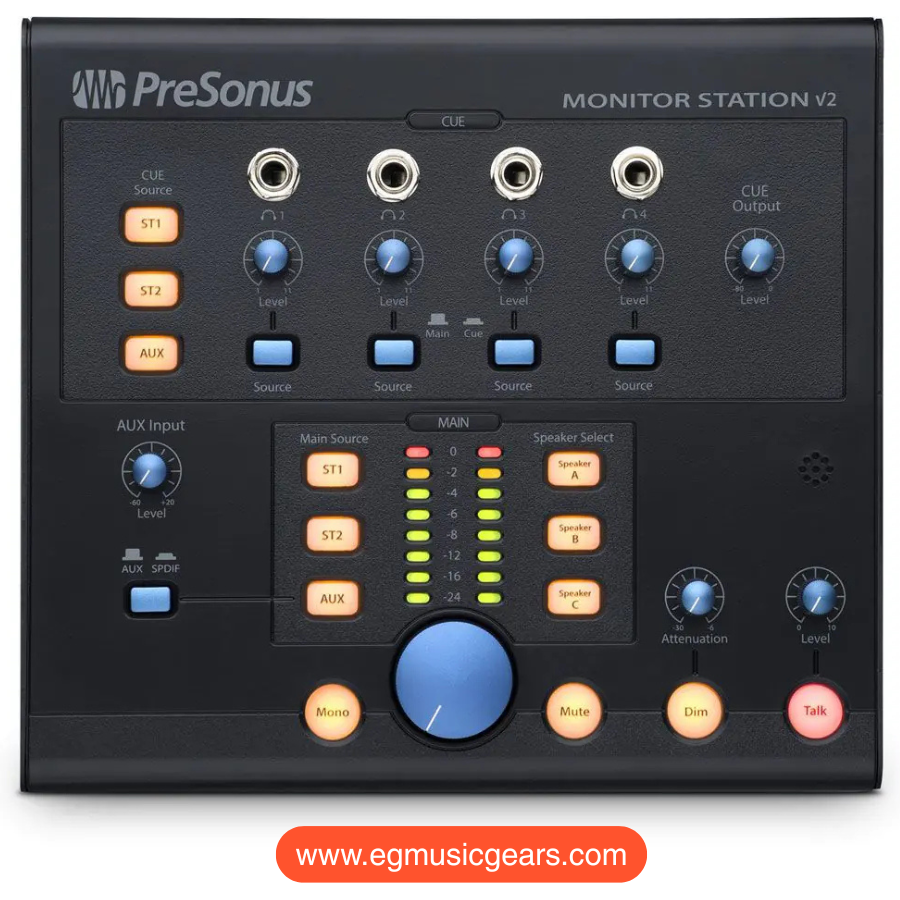

Additional controls.

The Monitor Station V2 offers many features to customize your monitoring system. A Mono switch sums the stereo outputs to check for phase problems. A large knob controls the main speaker output level (but not the main line-level outs), and a Dim switch lets you reduce the speaker output by a variable amount. You can mute the speakers as well.

Specs

Accessories

Footswitch

Electronics

VoltageRequirements

100-240 VAC, 50-60 Hz

General

Color

Black

Product Name

Monitor Station V2 Monitoring Controller, Black

Series

Monitoring Controllers

Hardware

Microphone Types

Electret Condenser

SPDIF Connection Type

RCA 75Ω Coax

Speaker Output Connection Type

1/4"

Inputs

Auxiliary Input Connection Type

RCA Active, Unbalanced

Auxiliary Input Frequency Response

10 Hz to 50 kHz

Auxiliary Input Gain Range

80 dB to +10 dB

Auxiliary Input Impedance

47.5 kΩ

Auxiliary Input Signal To Noise Ratio

>115 dB

Auxiliary Input Total Harmonic Distortion

<0.01%

Line Input Connection Type

1/4" TRS, Balanced

Line Inputs Frequency Response

10 Hz to 65 kHz

Line Inputs Impedance

10 kΩ

Line Inputs Maximum Level

+22 dBu

Line Inputs Signal To Noise Ratio

>105 dB

Line Inputs Total Harmonic Distortion

<0.0075%

Measurements

Product Depth

8.5" (21.6 cm)

Product Height

2.5" (63.5 mm)

Product Width

9" (22.9 cm)

Miscellaneous

Power Cable

External DC Transformer/Internal Line, 18 VDC

Output

Cue Output Connection Type

1/4"

Cue Output Dim Attenuation

-20 dB (Talkback Activated)

Cue Output Gain Range

-80 dB to 0 dB

Headphone Outputs Frequency Response

10 Hz to 50 kHz

Headphone Outputs Maximum Output

150 mW / channel

Main And Line Outputs Frequency Response

10 Hz to 50 kHz

Main And Line Outputs Output Impedance

51Ω

Main And Line Outputs Total Harmonic Distortion

<0.01%

Main Outputs Connection Type

1/4" TRS, Balanced

SPDIF Maximum Output

+18 dBu

SPDIF Total Harmonic Distortion

0.0025% (1 kHz @ -1 dBFS)

Performance

Microphone Gain Range

+15 to +55 dB

Microphone Sensitivity

-42 dB

SPDIF Supported Sample Rates

44.1, 48, 88.2, 96 kHz
